Titanium

Titanium Titanium is a silvery metal that is commonly found in the aerospace, medical, and automotive industries. At Fine Metals, we offer titanium in a variety of purities. Details General Properties Symbol: Ti Atomic Number: 22 Atomic Wei

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium

Titanium is a silvery metal that is commonly found in the aerospace, medical, and automotive industries. At Fine Metals, we offer titanium in a variety of purities.

Details

General Properties

Symbol: Ti
Atomic Number: 22
Atomic Weight: 47.90
Density: 4.54 gm/cc
Melting Point: 1660 oC
Boiling Point: 3287 oC
Thermal Conductivity: 0.219 W/cm/K @ 298.2 K
Electrical Resistivity: 42.0 microhm-cm @ 20 C
Electronegativity: 1.5 Paulings
Specific Heat: 0.125 Cal/g/K @ 25 oC
Heat of Vaporization: 106.5 K-Cal/gm atom at 3287 oC
Heat of Fusion: 5.0 Cal/gm mole

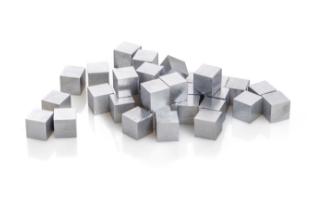

Titanium Cube Specifications

Inquire about custom sizing and/or metals or alloys not listed.

99.4% - 99.999% Purity

Thickness	Width	Length
.25″	.25″	.25″
.375″	.375″	.375″
.50″	.50″	.50″

Titanium Disc Specifications

Inquire about custom sizing and/or metals or alloys not listed.

99.4% Purity

Thickness	Diameter
.001″ to .004″	.250″ to 4″ maximum
.005″ to .032″	.250″ to 8″ maximum
.035″ to .055″	.250″ to 6″ maximum
.062″ to .115″	.250″ to 8″ maximum
.125″ to .50″	.250″ to 16″ maximum

99.98% - 99.999% Purity

Thickness	Diameter
.001″ to .004″	.250″ to 2″ maximum
.005″ to .055″	.250″ to 6″ maximum
.062″ to .115″	.250″ to 8″ maximum
.125″ to .50″	.25″ to 16″ maximum

Titanium Foil Specifications

Inquire about custom sizing and/or metals or alloys not listed.

99.4% Purity

Thickness	Width	Length
.001″ to .029″	12″ maximum

99.95% - 99.999% Purity

Thickness	Width	Length
.001″ to .003″	4″ maximum	12″ maximum
.004″ to .029″	6″ maximum	24″ maximum

Titanium Ingot Specifications

Inquire about custom sizing and/or metals or alloys not listed.

99.4-99.999% Purity

Please inquire about sizing and availability.

Titanium Pellet Specifications

Inquire about custom sizing and/or metals or alloys not listed.

99.4% - 99.999% Purity

Diameter	Length
.040″	.040″ to 1″ maximum
.062″	.062″ to 1″ maximum
.070″	.070″ to 1″ maximum
.080″	.080″ to 1″ maximum
.085″	.085″ to 1″ maximum
.095″	.095″ to 1″ maximum
.125″	.125″ to 1″ maximum
.185″	.185″ to 1″ maximum
.196″	.196″ to 1″ maximum
.236″	.236″ to 1″ maximum
.250″	.125″ to 1″ maximum
.375″	.250″ to 1″ maximum
.50″	.250″ to 1″ maximum

Our standard tolerances for pellets are +/- .005″ diameter and +/-.020″ length.

Titanium Plate Specifications

Inquire about custom sizing and/or metals or alloys not listed.

99.4% Purity

Thickness	Width	Length
.032″ to .125″	up to 12″	1″ to 48″ maximum
.250″ to .500″	up to 24″	1″ to 48″ maximum

99.95% - 99.999% Purity

Thickness	Width	Length
.032″ to .055″	up to 6″	1″ to 24″ maximum
.062″ to .125″	up to 9″	1″ to 24″ maximum
.250″ to .500″	up to 16″	1″ to 30″ maximum

Titanium Rod Specifications

Inquire about custom sizing and/or metals or alloys not listed.

99.4% Purity

Diameter	Length
.062″ up to 1.0″	up to 12′ maximum

99.98%, 99. 995% and 99.999% Purity

Diameter	Length
.062″ up to .25″	up to 12′ maximum
.375″ up to .625″	up to 8′ maximum
.750″ up to 1.0″	up to 6′ maximum

Titanium Starter Source Specifications

Inquire about custom sizing and/or metals or alloys not listed.

99.95 - 99.999% Purity

We can provide starter sources in a variety of sizes. Please inquire for specific availability, price, and delivery.

Titanium Strip Specifications

Inquire about custom sizing and/or metals or alloys not listed.

99.4% Purity

Thickness	Width	Length
.001″ to .029″	.250″ to 1″	1″ to 24″ maximum

99.95% - 99.999% Purity

Thickness	Width	Length
.001″ to .003″	.250″ to 1″	1″ to 6″ maximum
.004″ to .029″	.250″ to 1″	1″ to 24″ maximum

Titanium Target Circular Specifications

Inquire about custom sizing and/or metals or alloys not listed.

99.4% Purity

Thickness	Diameter
.001″ to .004″	.25″ to 4″ maximum
.005″ to .032″	.25″ to 8″ maximum
.035″ to .055″	.25″ to 6″ maximum
.062″ to .115″	.25″ to 8″ maximum
.125″ to .50″	.25″ to 16″ maximum

99.95% - 99.999% Purity

Thickness	Diameter
.001″ to .004″	.25″ to 2″ maximum
.005″ to .055″	.25″ to 6″ maximum
.062″ to .115″	.25″ to 8″ maximum
.125″ to .50″	.25″ to 16″ maximum

Titanium Target Rectangular Specifications

Inquire about custom sizing and/or metals or alloys not listed.

99.4% Purity

Thickness	Width	Length
.001″ to .110″	5″ maximum	15″ maximum
.125″ to .50″	6″ maximum	32″ maximum

99.95% - 99.999% Purity

Thickness	Width	Length
.005″ to .110″	5″ maximum	15″ maximum
.125″ to .50″	6″ maximum	32″ maximum

Titanium Wire Specifications

Inquire about custom sizing and/or metals or alloys not listed.

99.4% - 99.999 % Purity

Diameter
.004″ up to .125″
